Our Mechanical Pneumatic Press Brakes are backed with an efficient drive system. The frame of these press brakes is made up of robust steel which is absolutely stain free. The frame of our press brakes also provides support to the adjustable RAM as well as BED and help them function with perfection without getting affected from undesired deflection. The Mechanical Pneumatic Press Brakes are mounted with quality accredited the best friction clutches that are synchronized perfectly to the presses brakes. Our press brakes find their usage in variety of pneumatic as well as hydraulic applications. Their ability to allow higher flywheel energy as well as deliver high frequency of operations make them a clients favorite.
Features:
- Perfect alignment
- High torque
- Maximum rigidity
- Minimum deflections
Standard Accessories :
- Foot Pedal & Die Block Lifting Link
- Fly Wheel & Gear Guard
- Self Lubrication Systems
- Motor Pulleys
- Standard Blocks and Punches
- Motor Mounting Brackets
Optional Accessories :
- Motorized Back Gauges
- Automatic Lubrication Systems
- Vee-Belts
- Electric Motor & Control Panel Boards
- Stroke Counters
- Various type of Dies & Punches
- Foundation Bolts
FRAME : Frame is of robust steel construction of rigid and interlocked design. It is strain-free and supports the Ram and Bed against undesired deflection under permissible load condition.
RAM AND BED :
Made from Steel Plates of suitable thickness. Machines for straightness and parallelism of the working surface. Ram is guided and supported throughout the stroke by accurately machines guide ways.
DRIVE SYSTEM :
Power is transmitted to the Ram through two individual Gear drives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft electric motor used is of sufficient H.P. Which reduces slowdown of flywheel and increases energy available per stroke. The Gear and pinion are made out of carbon / alloy steel.
RAM ADJUSTMENT :
Motorised Ram Adjustment through a simple drive mechanism facilitates quick bending angle adjustment is made simple by incorporating a spring loaded dog clutch.
CLUTCH AND BRAKE :
All series of Press are provided with high torque how-inertia Friction Clutch, Synchronised with heavy duty mechanical Brake ensuring immediate braking of Ram on releasing the Pedal. Clutch operating levers are designed in such a way that minimum, engaging force is required of the pedal.
STANDARD ACCESSORIES :
Foot Pedal and Die Block Lifting Link, Fly Wheel & Gear Guard, Self Lubrication System, Motor Pully, Standard Block and Punch, Motor Mounting Bracket
OPTIONAL ACCESSORIES :
Motorized Back Gauge, Automatic Lubrication System, Vee-Belts, Electric Motor & Starter/Control Panel Board, Stroke Counter, Various type of Die & Punch, Foundation Bolts
Specification :
Model | Tonn
Age. | Clear Dist.
Between
Housings | Bending Cap. In Ms Length X Thickness | Main Motor
Hp/Kw | Ram Adj.
Ele. Motor
Hp/Kw | Stroke Per
Minu. | Stroke
Of Ram
M.M. | Ram
Adj.
M.M. | Shut
Height
Ram Stroke | Depth
Of Throat
M.M. | Overall Dimension In Mm (APP.) |
Length A | Breadth B | Height C |
JPB-1 | 20 | 1000 | 1525 x 1.6 | 3 / 2.2 | MANUAL | 30 | 50 | 40 | 200 | 200 | 1900 | 1100 | 2300 |
JPB-2 | 30 | 1220 | 2030 x 2 | 5 / 3.7 | 05/ | 30 | 60 | 40 | 200 | 200 | 2400 | 1100 | 2300 |
JPB-2 | 30 | 1700 | 2540 x 1.6 | 5 / 3.7 | 1 / .75 | 30 | 60 | 40 | 200 | 200 | 2900 | 1100 | 2300 |
JPB-3 | 40 | 1000 | 1525 x 3 | 7.5 / 5.6 | 05/ | 30 | 60 | 40 | 200 | 200 | 1900 | 1200 | 2300 |
KPB-3 | 40 | 1700 | 1540 x 2 | 7.5 / 5.6 | 1 / .75 | 30 | 60 | 40 | 200 | 200 | 2900 | 1200 | 2300 |
KPB-4 | 60 | 1220 | 2030 x 4 | 7.5 / 5.6 | 1 / .75 | 30 | 60 | 50 | 225 | 225 | 2400 | 1200 | 2500 |
KPB-4 | 60 | 1700 | 2540 x 3 | 7.5 / 5.6 | 1 / .75 | 30 | 60 | 50 | 225 | 225 | 2900 | 1200 | 2500 |
KPB-5 | 80 | 1220 | 2030 x 5 | 10 / 7.7 | 1 / .75 | 25 | 75 | 75 | 250 | 250 | 2400 | 1500 | 2800 |
KPB-5 | 80 | 1700 | 2540 x 4 | 10 / 7.7 | 1 / .75 | 25 | 75 | 75 | 250 | 250 | 2900 | 1500 | 2800 |
KPB-5 | 80 | 1900 | 3125 x 3 | 10 / 7.7 | 1 / .75 | 25 | 75 | 75 | 250 | 250 | 3500 | 1500 | 2800 |
KPB-6 | 100 | 1220 | 2030 x 6 | 12.5 / 9.7 | 1.5 / 1 | 25 | 75 | 75 | 250 | 250 | 2400 | 1800 | 3000 |
KPB-6 | 100 | 1700 | 2540 x 5 | 15 / 11.2 | 1.5 / 1 | 25 | 75 | 75 | 250 | 250 | 2900 | 1800 | 3000 |
KPB-7 | 100 | 1900 | 3125 x 4 | 15 / 11.2 | 1.5 / 1 | 25 | 75 | 75 | 250 | 250 | 3500 | 1800 | 3000 |
KPB-8 | 120 | 1220 | 2030 x 8 | 15 / 11.2 | 2 / 1.5 | 20 | 75 | 75 | 275 | 300 | 2500 | 1800 | 3400 |
KPB-8 | 120 | 1700 | 2540 x 6 | 15 / 11.2 | 2 / 1.5 | 20 | 75 | 75 | 275 | 300 | 3000 | 1800 | 3400 |
KPB-9 | 120 | 1900 | 3125 x 5 | 15 / 11.2 | 2 / 1.5 | 20 | 75 | 75 | 275 | 300 | 3700 | 1800 | 3400 |
KPB-10 | 160 | 1220 | 2030 x 10 | 20 / 15 | 2 / 1.5 | 20 | 75 | 90 | 300 | 300 | 2500 | 2000 | 3400 |
KPB-10 | 160 | 1700 | 2540 x 8 | 20 / 15 | 2 / 1.5 | 20 | 75 | 90 | 300 | 300 | 3100 | 2000 | 3400 |
KPB-10 | 160 | 1900 | 3125 x 6 | 20 / 15 | 2 / 1.5 | 20 | 75 | 90 | 300 | 300 | 3700 | 2000 | 3400 |
KPB-12 | 200 | 1220 | 2030 x 12 | 25 / 18.7 | 2 / 1.5 | 20 | 90 | 90 | 300 | 300 | 2500 | 2100 | 3600 |
KPB-12 | 200 | 1700 | 2540 x 10 | 25 / 18.7 | 2 / 1.5 | 20 | 90 | 90 | 300 | 300 | 3100 | 2100 | 3600 |
KPB-12 | 200 | 1900 | 3125 x 8 | 25 / 18.7 | 2 / 1.5 | 20 | 90 | 90 | 300 | 300 | 3700 | 2100 | 3600 |

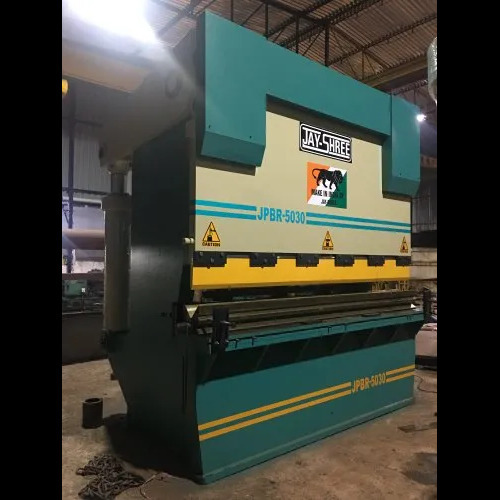

Robust Steel Frame ConstructionDesigned with a rigid welded steel structure, this press brake guarantees stability and minimizes vibration, ensuring precise and repeatable results. The durable frame supports high bending strength up to 200 tons, making it suitable for heavy-duty operations in industrial environments. Powder coated for longevity, it is built to withstand rigorous use.
Advanced CNC Control SystemThe CNC controller provides programmable settings and digital display, allowing operators to configure 24 axes as needed. Adjustable ram speed and automatic modes enhance productivity, while high-precision accuracy delivers consistently quality bends. The controller simplifies operation and streamlines multi-step processes, boosting efficiency for manufacturers.
Integrated Hydraulic and Safety FeaturesEquipped with an advanced hydraulic system, oil cooling, and user-friendly emergency stop, this machine supports extended usage with minimal downtime. Overload protection, semi/full automatic operation, and universal die compatibility ensure safe and flexible operation tailored for an array of sheet metal projects.
FAQs of CNC Hydraulic Press Brake:
Q: How does the CNC controller improve sheet metal bending operations?
A: The CNC controller allows operators to program precise bending sequences, adjust ram speed, and configure up to four axes. This ensures high accuracy, repeatability, and automates multiple tasks for increased efficiency in production environments.
Q: What is the process for adjusting the back gauge and ram speed?
A: Operators can automatically set the back gauge up to 1000 mm and customize ram speed via the controllers digital interface. These adjustments provide flexibility for different materials and bending requirements, optimizing the process for diverse applications.
Q: When should the emergency stop and overload protection features be used?
A: Use the emergency stop and overload protection features if unsafe conditions or mechanical failures occur during operation. These safety components help prevent accidents and protect both the operator and the machinery from damage.
Q: Where is this hydraulic press brake commonly deployed?
A: This press brake is widely used in manufacturing industries across India, especially by exporters, suppliers, and sheet metal fabricators who need precise bending solutions for heavy-duty metalwork and industrial production.
Q: What benefits does the universal die system provide?
A: The universal die system increases flexibility by enabling compatibility with various die types and allowing for quick tool changeovers. This reduces downtime and supports diverse bending applications on sheet metals of different thicknesses.
Q: How can users maintain optimal performance using the oil cooling system?
A: Routine monitoring and maintenance of the integrated oil cooling system ensures stable hydraulic temperatures, reduces wear, and extends the life of core machine components, guaranteeing consistent performance even under prolonged use.
